Understanding Punching Shear in Pad Foundations

This article examines the punching shear mechanism in pad foundations and how modern design tools like greenPad improve safety and efficiency. By moving beyond manual simplifications, engineers can rigorously evaluate edge and corner column conditions and identify the true critical perimeter to ensure structural integrity.

Author: Vinod Kumar Golla
Published: January 9, 2026
Featured image: Understanding Punching Shear in Pad Foundations

Punching Shear Mechanism – Pad Foundation

Punching shear is a local shear failure that can occur when a concentrated load (e.g., a column) is transferred into a slab or pad foundation. Unlike flexural behaviour, the governing action is a diagonal shear crack that develops around the column and may lead to a sudden loss of capacity.

However, by harnessing the computational power of greenPad, engineers can move beyond manual simplifications. This approach provides a smarter, leaner way to handle this risk, specifically by rigorously evaluating the control perimeter and identifying the governing critical perimeter rather than relying on conservative assumptions.

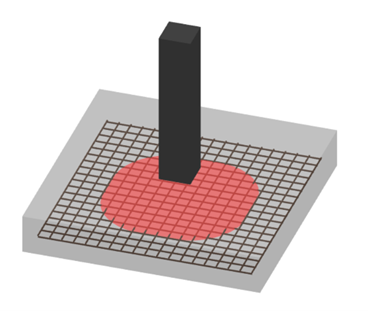

Punching shear mechanism around a column schematic
Figure 1: Punching shear mechanism around a column (schematic).

What is Punching Shear?

In a slab or pad foundation, the column load is carried by concrete in a region close to the column face. When shear demand exceeds the available resistance, a critical inclined crack forms, and the slab may fail by punching around the column.

In design, we don't try to model the full crack surface directly. Instead, codes define a control perimeter and check the shear stress along that perimeter.

Eurocode control perimeter at \(2d\)

Eurocode 2 defines a standard control perimeter \(u_1\) located at a distance of \(2d\) from the column face, where \(d\) is the effective depth. The shear stress \(v_{Ed}\) acting on this perimeter is calculated as:

\[v_{Ed} = \frac{\beta \cdot V_{Ed}}{u_1 \cdot d}\]

\(u_1\) represents the length of the perimeter resisting the punching action, and \(\beta\) accounts for the eccentricity of the load.

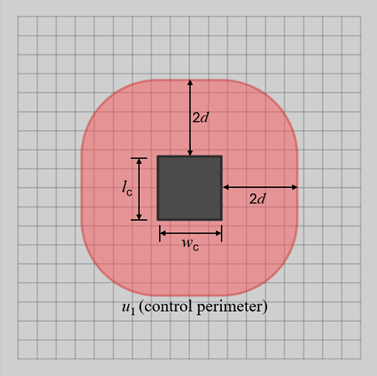

Plan view showing control perimeter
Figure 2: Plan view showing \(u_1\) (control perimeter) at \(2d\) from the column face.

Edge and corner columns: reduced perimeters

Real-world buildings rarely have columns perfectly centred in every slab. When a column is located near an edge or a corner, the physics changes dramatically.

greenPad uses advanced geometry detection to identify these conditions automatically. If a column is near an edge, the "cone" of failure is cut off; it can't form in the empty air. The software effectively "cuts" the control perimeter, reducing the effective \(u_1\).

  • Internal Column: Full 360 degrees resistance.
  • Edge Column: Reduced “U-shaped” resistance.
  • Corner Column: Severely reduced “L-shaped” resistance.

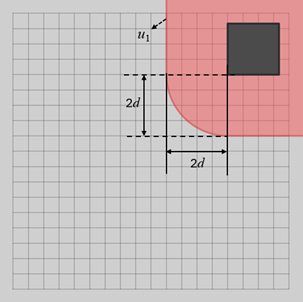

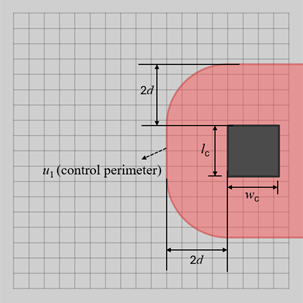

Edge perimeter Corner perimeter
Figure 3: Edge and corner cases showing perimeter truncation.

Critical perimeter \(a_{crit}\): Finding the 'Tipping Point'

A common misconception is that the governing check always occurs exactly at \(2d\). In reality, the utilisation ratio (UR) often peaks closer to the column. This creates a "tipping point" due to two competing physical effects:

  • Close to the column: The perimeter is small (creating high shear stress), but the concrete strength is enhanced by confinement.
  • Further out (towards \(2d\)): The perimeter is larger (lowering stress), but the confinement benefit diminishes.

greenPad performs an iterative optimisation to identify the peak demand:

\[UR(a) = \frac{v_{Ed}(a)}{v_{Rd,c}(a) + v_{Rd,f}(a)} \Rightarrow a_{crit} = \arg \max_a UR(a)\]

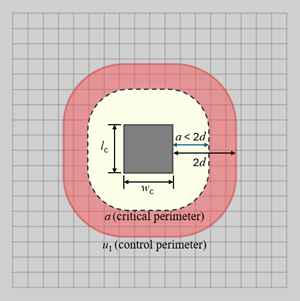

Iterative scan diagram
Figure 4: Concentric perimeter scan highlighting \(u_1\) at \(2d\) and \(a_{crit}\) where UR peaks.

Incorporating Fibre Reinforcement

For designs that utilise Fibre Reinforced Concrete (FRC), greenPad makes the verification process effortless. The software automatically includes the residual strength provided by fibres (\(v_{Rd,f}\)) within the optimisation check shown above.

Whether applying established guidance like TR34 or emerging standards such as the draft Eurocode 2 Annex L, the software rigorously calculates the fibre contribution at every perimeter. This ensures that the enhanced toughness of the material is fully translated into verifying capacity, allowing for efficient design without manual bookkeeping.

Conclusion

Punching shear design is governed by local geometry and the effective resisting perimeter. A reliable check requires the correct treatment of internal/edge/corner conditions and identifying the governing critical perimeter where the combined demand on concrete and fibres is highest. greenPad automates these steps consistently and transparently.
